EL PANAL - Specification

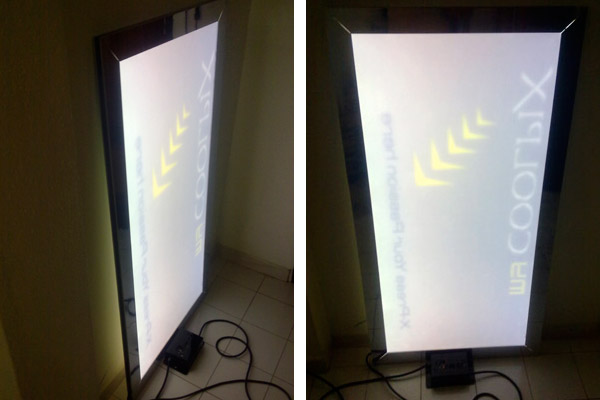

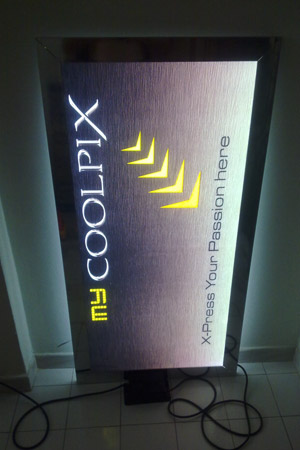

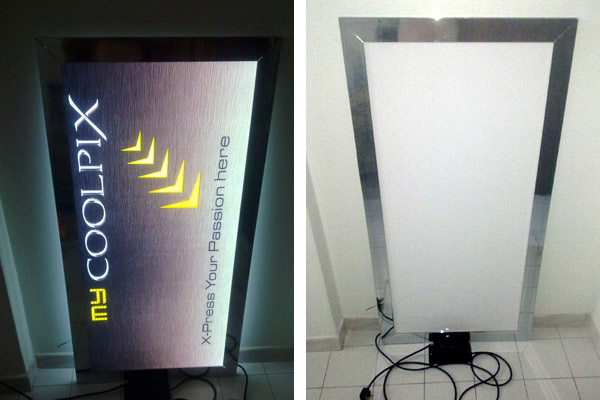

Description : LED Edge Lighting Advertising Light Box
Material : A-CAST Acrylic, Alluminium Profile c/w coating, White colour LED, Wire & power supply.

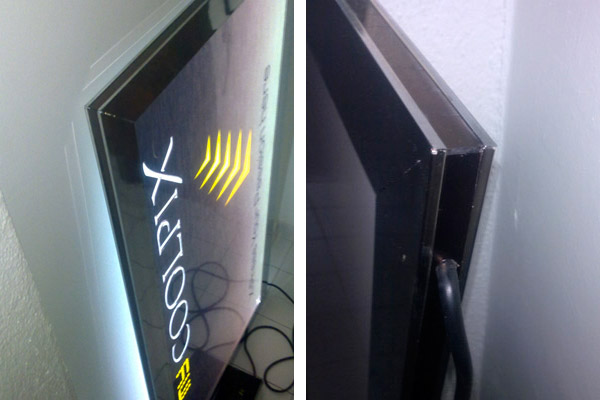

Size : Alluminium Frame size
  • 1270mm(H) x 660mm(W) x 22mm(T)
Display Area
  • 1150mm(H) x 530mm(W)
LED : Dimension
  • 1200mm(L) x 85mm(W) x 3mm(T)
Emitter
  • 0.03MA x 120 pcs x 2 strips
Voltage
  • 12V DC power
Brightness
  • ???

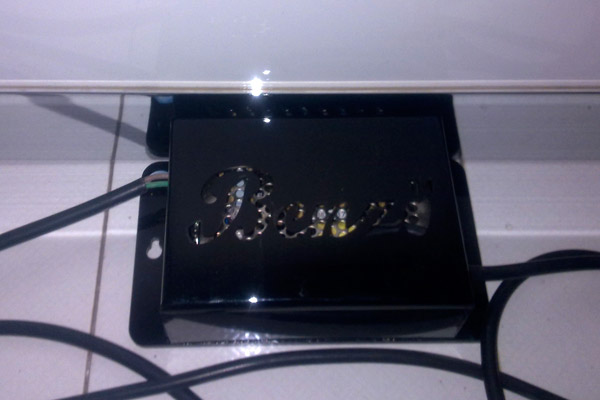

Power Supply : Input
  • 100 - 120VAC         0.8A
  • 200 - 240VAC         0.45A
  • 50 / 60Hz
Output
  • 12V         2A
2C PVC Insulated Cable
AC Power Supply : 13A Power Plug Top
23/0.193 x 3C PVC Insulated Cable
